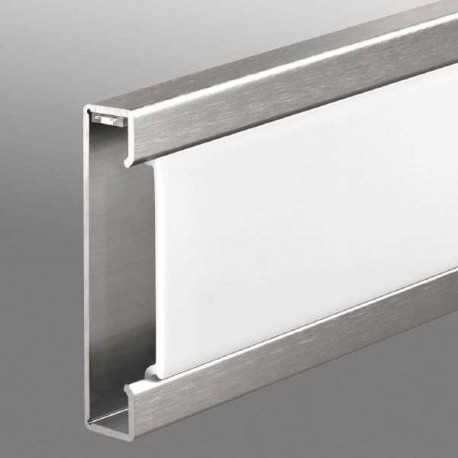

Versatile high quality aluminum skirting profile with numerous applications that can be used as a border, aluminum skirting or aluminum skirting as a finish on vertical surfaces. The profile has a visible surface of 10 mm width and a free space of 39 mm, which offers the possibility of accommodating different LED strips inserted into it.
With the LIPROTEC-ES LED strips, direct and homogeneous lighting is achieved through the flush use of the diffusers.
In the same way, other decorative materials, such as ceramics or wood, can be used, inserting these elements in the free space.
To facilitate the bond between the smooth aluminum surface and the ceramic, the self-adhesive tape with DESIGNBASE-HVL geotextile will be applied. The profile offers the possibility of housing the power cable of the LED strips.
On the other hand, DESIGNBASE-QD with its visible area of 60 mm can be used as a skirting profile with the possibility of housing cabling or as a finish profile for kitchen countertops in combination with KERDI-BOARD 38 mm. DESIGNBASE-QD combines perfectly with the profiles of the -QUADEC, -RONDEC and -DESIGNLINE series.
For an easy and elegant union of the DESIGNBASE-QD profiles in the interior and exterior corners, as well as in the finishing of the same, its corresponding end cap is available. The diffusers and components are used interchangeably in the assembly.
Material
DESIGNBASE-QD is available in the following materials:
Profile:
- AE = Matte natural anodized aluminum
Diffuser:
- PMMA = Polymethylmethacrylate
Material properties and fields of application
In certain cases, the suitability of the type of material must be checked according to the expected chemical or mechanical loads. Here are just a few general tips that can be given.
DESIGNBASE-QD-AE (anodized aluminum). Aluminum has an anodized surface layer that is not disturbed during normal use. The deterioration of the anodized can only be repaired by means of a new lacquer.
Visible surfaces must be protected from abrasion and possible scratches. Aluminum is sensitive to alkaline media.
The materials that contain cement glue in combination with humidity, act alkaline, and can cause corrosion depending on the concentration level and the time of exposure (formation of aluminum hydroxide). Therefore, any remaining cement or grouting material must be removed immediately. Also, avoid covering the surface with a protective film.
LIPROTEC diffusers are made of PMMA (polymethylmethacrylate), which is a light and translucent plastic material. Visible surfaces must be protected from abrasion and possible scratches. The remains of cement or grouting material will be removed immediately.
Products that contain alcohol as well as cleaning products with> 5% surfactants can cause damage to the diffuser.
Note
The profiles with their diffusers must be positioned in such a way that water cannot accumulate inside.
The low heat generation of the LED can cause small expansions of the profile and the diffuser.
How to use
Note: For the installation of the LED profiles, as well as for planning and subsequent wiring, the LIPROTEC mounting instructions must be observed.

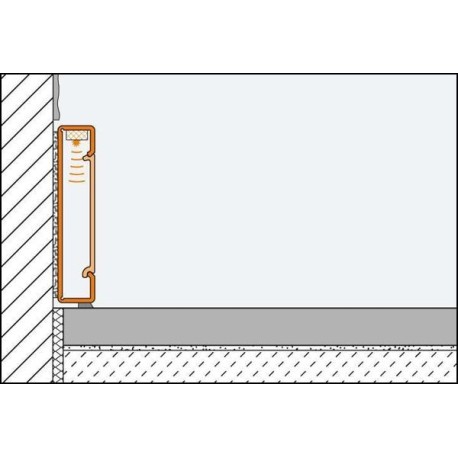

As a baseboard profile illuminated by Schlüter diffusers or as a support for other decorative materials
A. Gluing with KERDI-FIX
- In the illuminated version, drill the profile for the cable entry and deburr the hole.
- DESIGNBASE-QD will be glued with KERDI-FIX mounting adhesive or equivalent material. Apply the adhesive on the outside of the profile, which will be attached later. Before applying the adhesive, the surfaces must be properly cleaned and degreased with the appropriate products.
- Remove excess and traces of adhesive with the appropriate cleaning products.
B. Bonded with traditional ceramic adhesive.
- In the illuminated version, drill the profile for the cable entry and deburr the hole.
- Apply the DESIGNBASE-HVL self-adhesive tape previously, the surfaces must be properly cleaned and degreased with the appropriate products.
- There, where DESIGNBASE-QD must be positioned, apply traditional ceramic adhesive and press the profile to its entire surface.
- Sensitive surfaces must be worked with suitable materials and tools, which cannot cause scratches or damage. The mortar or grouting material will be removed immediately from the visible areas.
Mounting the Designbase-QDD diffuser
Place the diffuser in the correct position and press until you hear the corresponding clip as shown in the image.
Assembly of decorative elements such as ceramics or wooden decorations
Before applying the adhesive to the interior bonding area, the surfaces must be properly cleaned and degreased with the appropriate products.
Apply traditional ceramic adhesive and press the decorative element on its entire surface.
Mounting as a design profile with a visible surface of 60 mm
DESIGNBASE-QD will be glued with KERDI-FIX mounting adhesive or equivalent material. Apply the adhesive on the 10 mm wide areas for later gluing. Before applying the adhesive, the surfaces must be properly cleaned and degreased with the appropriate products.
Remove excess and traces of adhesive with the appropriate cleaning products.
Mounting as end profile of the 38 mm KERDI-BOARD construction panel
DESIGNBASE-QD will be glued with KERDI-FIX mounting adhesive or equivalent material. Apply the adhesive on the interior area of the profile for later gluing. Before applying the adhesive, the surfaces must be properly cleaned and degreased with the appropriate products.
